उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: COWELL
प्रमाणन: CE
मॉडल संख्या: HYF-01, HYF-02
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1
पैकेजिंग विवरण: कठोर कार्टन
प्रसव के समय: 7-15 कार्य दिवस
भुगतान शर्तें: टी/टी
उत्पाद: |
एपीआई एडाप्टर |
आकार: |
4" |
सामग्री: |
एल्यूमीनियम मिश्र धातु |
आवेदन: |
डीजल, गैसोलीन, केर्सिन |
उत्पाद: |
एपीआई एडाप्टर |
आकार: |
4" |
सामग्री: |
एल्यूमीनियम मिश्र धातु |
आवेदन: |
डीजल, गैसोलीन, केर्सिन |
Description

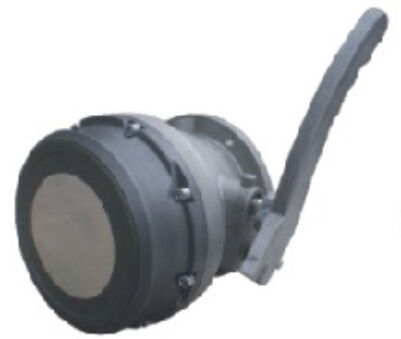

HYF series API Adaptor is installed on one side of the tanker bottom for quick unloading. When loading the fuel, it connects with API adaptor coupler tightly,
When unloading the fuel, two-stage fixed handle control the flow rate and side pull effectively.
Characteristics
Aluminum alloy die-cast sturcture, anodized treatment
Hydrodynamic design minimizes the pressure drop for high flow rate.
Light weight, die cast aluminum construction for increased payloads with strength.
Two-stage fixed aluminum handle positively indicates valve position.
Stainless steel operation shaft, cam & poppet stem for durability.
The sight glass can be check easily by operator
Material
Body: Aluminum alloy
Shaft: Stainless Steel
Spring: Stainless Steel
Bushing: Copper
Seal: NBR
Handle: Aluminum
|
Technical Specification |
||
|
Model |
HYF-01 |
HYF-02 |
|
Size |
4" |
|
|
Working pressure |
0.6 Mpa | |
|
Max. flow rate |
2500L/Min |
|
|
Air pressure required |
0.4-0.8 Mpa |
|
|
Temperature range |
-20~70℃ |
|
|
Connection mode |
Flange |
|
|
Operating mode |
Mechanical Fork |
Mechanical Rack |
|
Medium |
Diesel, Gasoline, Kersene |
|
